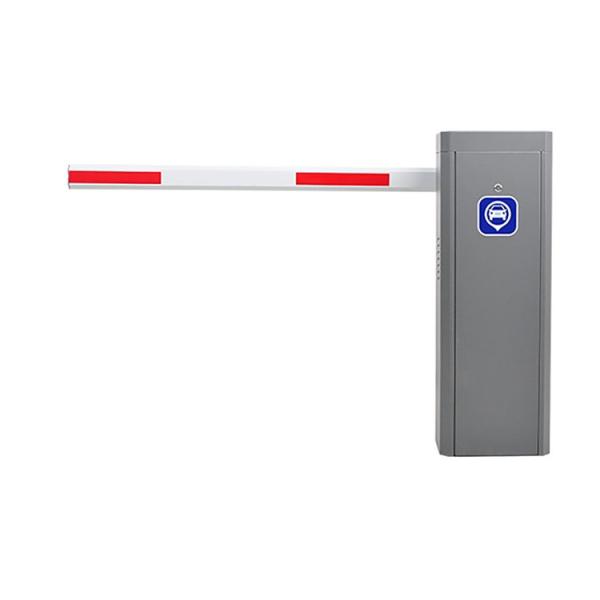

PRODUCT DESCRIPTION
The 1ST generation non-spring barrier gate is a breakthrough technology that solves the technical problem of traditional barrier gate requiring spring balance to operate smoothly and achieve sufficient torque. The 1ST generation brushless non-spring barrier gate uses the latest developed inflatable arm, which is lightweight, fast in operation, and can ensure long-term stable operation even for long barrier arm.
The inflatable arm also solves many other problems:
1. Convenient transportation (greatly reducing the cost of transportation;
2. Lightweight (greatly improving the lifetime of the barrier motor and reducing the failure rate, especially for non-spring motor with absolute advantages);
3. Not afraid of car collisions and typhoons damaging the barrier arm;
4. Truly achieving no harm to the car and people.;
5. Saves storage space and rent.
PRODUCT ADVANTAGES
The 1ST generation brushless non-spring barrier gate adopts the industry's most fashionable square cabinet design, with integrated mechanical and electrical design, left and right direction can be quickly interchanged, four-level gear large speed ratio design, large torque and high efficiency, can bear4.5m two fence arm, respond immediately at any angle without jerking. The high-power and high-torque permanent magnet rare earth DC brushless motor design, ultra-intelligent driver, and intelligent release of reverse voltage without damaging components can completely achieve a military-grade life span of more than 5 million times. The 1STgeneration non-spring barrier gate truly achieves safety, stability, reliability, durability,innovation, and high quality, and is an excellent choice for the high-end market!
FUNCTIONS
1.Operation speed can be adjusted.
2. Slow up and slow down can be adjusted.
3. The limit angle can be adjusted.
4. Left and right direction can be quickly interchanged.
5.The barrier arm can be manually operated in case of power failure.
6.418 frequency learning code anti-copy remote controller.
7.Infrared photocell sensor I/O signal input function.
8.Loop detector and radar I/O signal anti-collision signal input function.
9.Up,down and stop I/O signal input function.
10,Counting (fleet) function.
11.LED light lo signal output function.
12.Traffic light lo signal output function.
13.Up and down in place, normally open and normally closed signal output function.
14.RS485 communication output function.
15. Delay arm drop function.
16. Arm auto-reverse function.
17.Automatic lifting function when power is off (requires additional power storage module).
18, 10 port single-key cycle up and down function.
19.Loop detector normally open and normally closed function.
21.Anti-collision alarm function (requires additional fee, installation of alarm and sensor).
22.Fire linkage signal input function.
23.The l0 port closes the signal input function.
24. 24V storage battery input function.
TECHNICAL SPECIFICATION
| Model | DZ-2228 | DZ-2228 |
| Cabinet size | 280*280*975(mm) | 280*280*975(mm) |
| Working Temperature | -35℃~+65℃ | -35℃~+65℃ |
| Power Supply | DC24V; AC110V/220V, 50/60 Hz. | DC24V; AC110V/220V, 50/60 Hz. |
| Open/close Speed | 1.2Sec-3Sec(Adjustable) | 2.5Sec-6Sec(Adjustable) |
| Rated Power | 200W | 200W |
| Driving Method | DC brushless motor | DC brushless motor |
| Humidity | ≤90% | ≤90% |
| Remote Control Distance | ≤100m(open,sunny weather) | ≤100m(open,sunny weather) |
| Protection Grade | IP54 | IP54 |
| Motor No-load speed | 1850r/min | 1850r/min |
| Max Boom Length | 4.5m | 6m |
